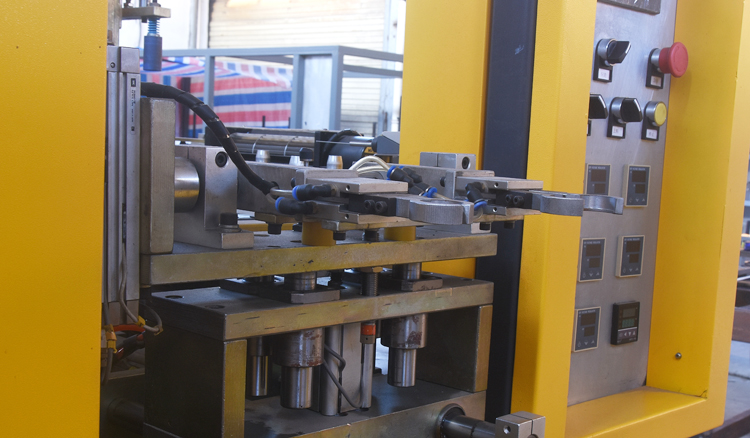

wd series bottle blowing machine is our newly developed fully automatic and preform hand feeding automatic bottle blowing machine equipment, which can blow the PET plastic containers from 0.1L to 30L in any shape. Like PET jars, food cans, carbonated beverage bottle, mineral spring bottle, pesticide bottle, cosmetic bottles, and other packaging container. With theadvantages of low scrap rate, high speed, stable performance, and easy operation etc.
About this series blowing machine, the preforms can be manual, it also can be matched with automatic loader system, and connects with the injection molding machine, with the advantages of saving labor, energy-saving, environment-friendly etc.
TYPE | ITEM | U N I T | WD-B3 |
CLAMPING | Clamping stroke | mm | 140 |
Stretching stroke | mm | 450 | |
Bottom stroke | mm | 30 | |
Cavity pitch | mm | 130 | |
Number of cavity | cavities | 2 | |
CONTAINER | Theoretical output | BPH | 1500-2400 |
Max container volume | L | 2.0 | |
Max.neck outer diameter | mm | 28-100 | |
Max.container diameter | mm | 120 | |
Max.container height | mm | 320 | |
ELECTRICAL | Number of Lamp | pcs | 32 |
Max.heating power | KW | 30 | |
Installed power | KW | 32 | |
Actual electricity consuming | KW | 8 | |
AIR SYSTEM | Operating pressure | kg/cm2 | 7 |
Low pressure air consumption | Ltr/min | 1200 | |
Blowing pressure | kg/cm2 | ≤30 | |
High pressure air consumption | Ltr/min | 2000-2500 | |
MACHINE | Machine size | m | 3.4x1.8x2.0 |
Machine weight | T | 3.2 |
